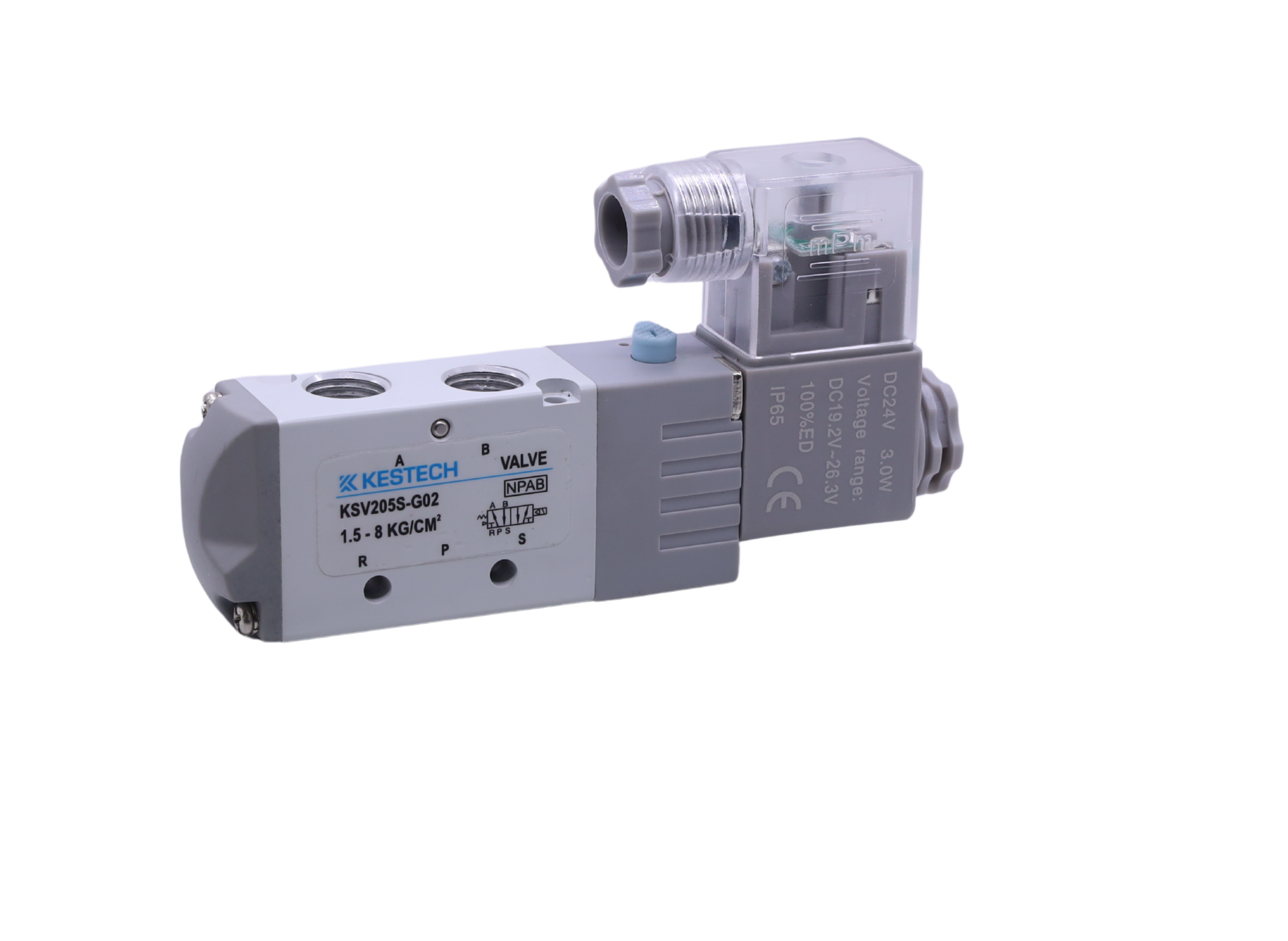

5/2 Port Solenoid Valve, Port 1/4", 24VDC
| Kestech Part Code | KSV205S-G02-5D |
|---|---|
| Product Type | 5/2 Directional Control Valve Single Coil |
| No of Port | 5 |
| No of Position | 2 |
| Coil | Single Coil |
| Pressure Port | G 1/4" |
| Cylinder Port | G 1/4" |
| Exhuast Port | G 1/8" |
| Coil Voltage | 24 VDC |
| Operating Pressure | 1.5 - 8 KG/CM2 |
| Max. Pressure | 8 KG/Cm2 |
| Pilot Type | Internal |
