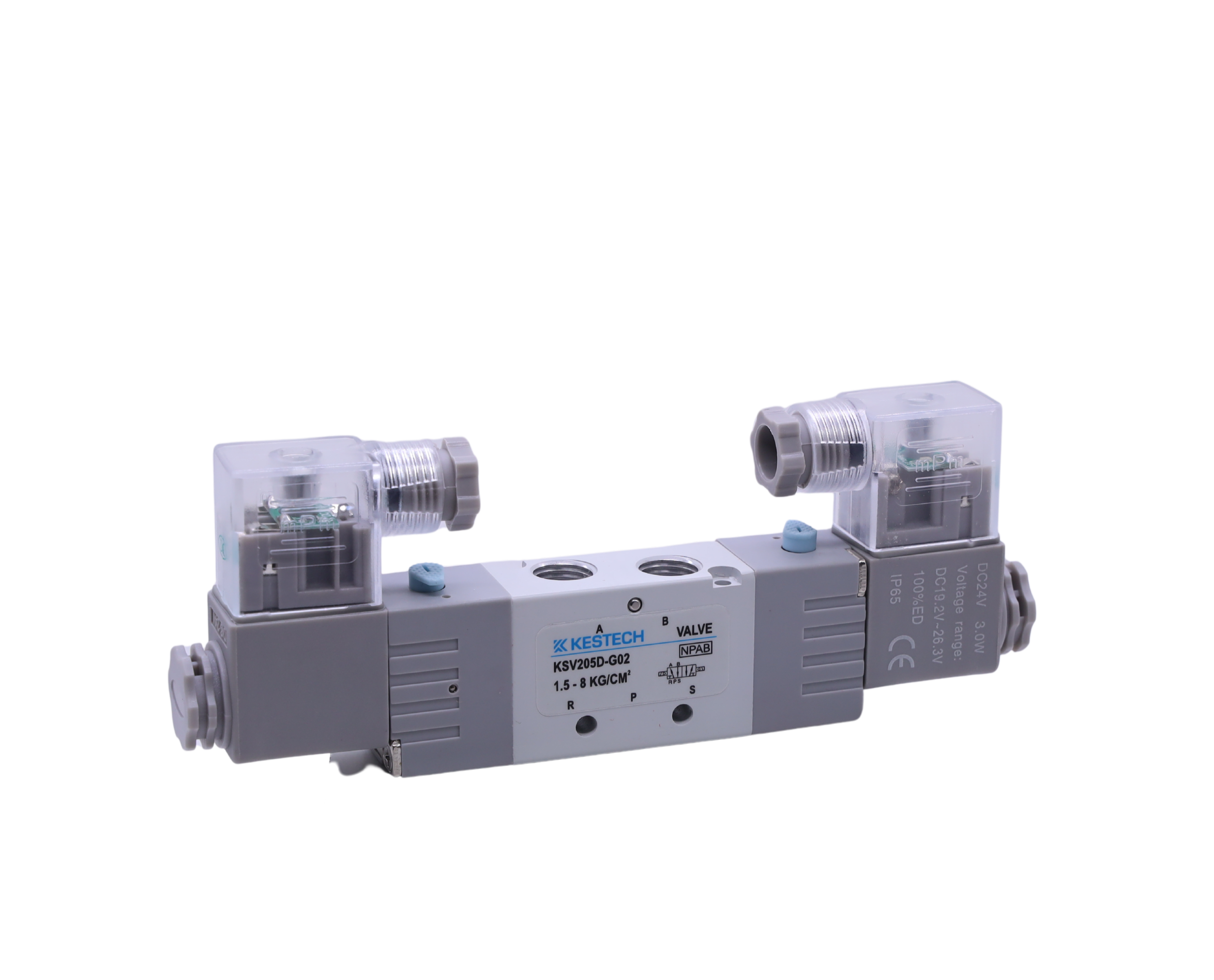

5/2 Port Solenoid Valve, Port 1/4", 24DC, Double Coil
| Kestech Part Code | KSV205D-G02-5D |
|---|---|
| Product Type | 5/2 Directional Control Valve Double Coil |
| Series | 2000 |
| No of Port | 5 |
| No of Position | 2 |
| Coil | Double |
| Pressure Port | G 1/4" |
| Cylinder Port | G 1/4" |
| Exhuast Port | G 1/8" |
| Coil Voltage | 24 VDC |
| Operating Pressure | 1.5 - 8 KG/CM2 |
| Max. Pressure | 1.5 - 8 KG/CM2 |
| Pilot Type | Internal |
